For architects and engineers designing luxury hospitality, institutional, and civic environments, faucet selection is as much an engineering and code exercise as a visual one. Flow rates, standards compliance, durability, accessibility, and long-term maintainability all sit alongside the aesthetic brief.

This technical review focuses on key FontanaShowers faucet groupings from an architecture & engineering (A&D) perspective, with emphasis on ADA, WaterSense-aligned performance, CALGreen-driven water efficiency, and ASME-based plumbing standards. The tone here is intentionally non-salesy; the focus is on where and how these products fit into real project specifications.

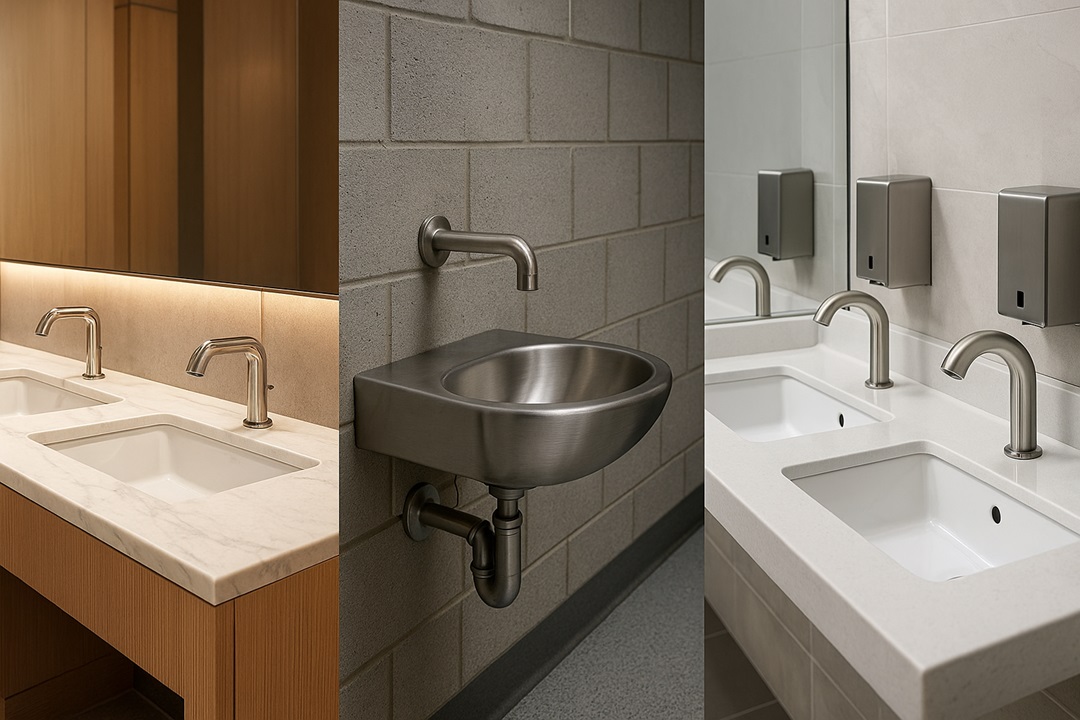

1. Overview of Collection from Design & Specification Perspective

1.1 Architect Series – Design-Led, Spec-Grade

The FontanaShowers Architect Series is positioned for design-led commercial and hospitality work, but the underlying documentation is written in spec language familiar to AEC professionals. The series highlights:

• Conformance to ASME A112.18.1/CSA B125.1 for plumbing supply fittings.
• The lead-free construction is done in accordance with NSF/ANSI 61/372.
• Low-flow configurations down to typical 0.35 to 0.5 gpm ranges that support water budgets in high-performance buildings.

From a design and coordination perspective, the Architect Series is best used where:

• The visual language calls for coordinated, contemporary geometries with consistent radii and edge treatments.
• The project requires a clearly documented spec-grade faucet family that can be referenced in Division 22 sections without relying on consumer-style marketing copy.

The Architect Series is presented as a curated group of products rather than a single model, so it applies well to master specifications and brand standards for which a family of compatible fixtures is required throughout guest rooms, public restrooms, and suites.

1.2 Pro Series – High-Traffic and Institutional Use

For facilities expecting abuse, heavy turnover, or constant public use, the Fontana Pro Series is a better reference point, with the Pro Series positioned as a heavy-duty platform to:

• Schools, universities, and student unions
• Hospitals and clinical support areas
• Libraries, transit hubs, and government facilities

Technical materials highlight:

• Conformance to ASME A112.18.1/CSA B125.1
• Vandal-resistant: tamper-resistant fasteners, anti-rotation gaskets, recessed outlets
• Sensor logic with configurable maximum run times to mitigate flood events.

In practice, this series corresponds to typical institutional risk profiles where:

• Fixtures are often subjected to impact and tampering.
• Operations staff need quick access to serviceable components without removing large finish panels.
• Water-damage risk and occupancy counts justify tighter control over unattended flow.

1.3 ADA-Focused and Touchless Collections

Fontana groups the accessibility-oriented models under an ADA-Compliant Bathroom Faucets category, which includes both lever-operated and touchless designs. For projects where touch-free operation and inclusive access are mandatory, the Touchless Faucets & Soap Dispensers for Public Restrooms page consolidates relevant sensor faucets and matching dispensers.

These grouped collections are of value from the A&D workflow standpoint because they:

• Narrow options to models that can be coordinated with ADA 2010 Standards and ICC A117.1 for reach ranges and operability (no tight grasping, pinching, or twisting).
• Offer touchless solutions that inherently satisfy many operable-part requirements while allowing under-counter thermostatic mixing valves for temperature control.

Doing so will, for early-stage planning, direct the project team and client toward these ADA and touchless collections to reduce late-stage redesign triggered by accessibility review.

2. Code, Standards, and Water-Efficiency Alignment

2.1 ADA & ICC A117.1 Considerations

Key ADA/ICC considerations for lavatory faucets include:

• Operable parts shall be operable with one hand and shall not require tight grasping, pinching, or twisting of the wrist. The force required to activate operable parts shall be no more than 5 pounds.
• Reach ranges and clearances: ICC A117.1 and the ADA Standards specify where controls can be located relative to the finished floor and clear floor space.

Touchless faucets from the above ADA and public restroom collections minimize risk on the operability side, in that activation is proximity-based rather than mechanical. For projects where manual volume or temperature controls are still present:

• Lever styles should be coordinated with front-approach and side-approach reach diagrams.
• Mounting heights should be specified along with lavatory height, trap location, and knee/toe clearance geometry.

The ADA-Compliant Bathroom Faucets grouping provides specifiers with a pre-curated starting point that reduces the need for model-by-model vetting of accessibility.

2.2 ASME A112.18.1/CSA B125.1 and NSF/ANSI 61/372

In general, from a plan check and plumbing review standpoint, specifiers would typically need to demonstrate that:

• Faucets meet a consensus standard for plumbing fittings called ASME A112.18.1/CSA B125.1.
• Components meet the requirements for lead-free status under NSF/ANSI 61 and 372, consistent with prevailing federal and state regulations.

Both the FontanaShowers Architect Series and Fontana Pro Series pages are positioned as meeting these standards. This makes it easier to:

• Writing Division 22 language that calls out ASME/CSA and NSF standards generically, while listing Fontana as an acceptable manufacturer.
• Providing clear documentation of submittals to code officials and third-party reviewers without having to rely on fragmented model-level PDFs.

2.3 WaterSense Benchmarks and CALGreen Context

Although WaterSense is a federal EPA program and not manufacturer-specific, its benchmarks are often used by owners and jurisdictions as a performance proxy:

• Bathroom faucets must not exceed 1.5 gpm at 60 psi with a minimum usable flow at lower pressures to carry the WaterSense label.

Fontana’s low-flow and touchless options on the Architect, Pro, and public restroom pages include configurations at or below the 0.5 gpm tier that many CALGreen- and LEED-focused projects now treat as standard practice.

Design teams can use the product ranges indicated on:

• FontanaShowers Architect Series
• Fontana Pro Series
• Touchless Faucets & Soap Dispensers for Public Restrooms

To align with:

• CALGreen indoor water-use reductions in California projects.
• Owner or institutional standards that require 0.5 gpm or lower flows in public lavatories to reduce peak and total demand.

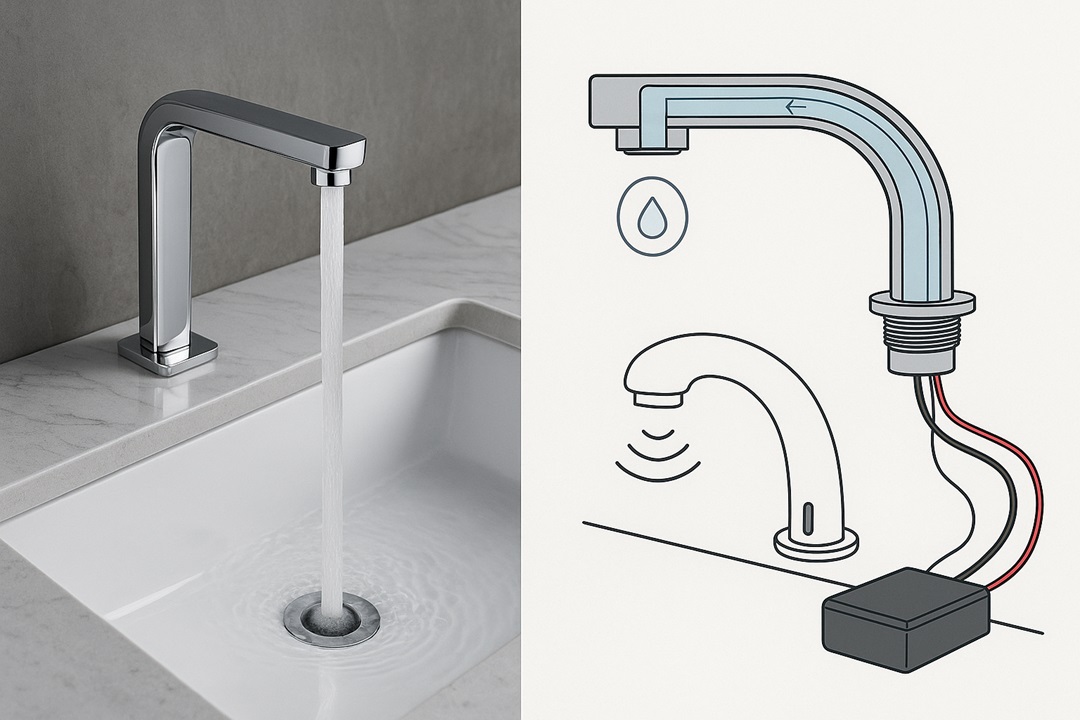

3. Hydraulic, Control, and Sensor Performance

3.1 Flow Characteristics and Lavatory Coordination

For low-flow faucets, hydraulic performance is not just about gpm; it’s about behavior at the basin:

• Laminar outlets are preferred where shallow or wide lavatories are used, as they limit splash and keep counters cleaner.
• Stable flow at variable system pressure provides protection against erratic streams that may compromise the user experience.

On the FontanaShowers Architect Series and public restroom pages, laminar- and low-flow configurations are part of the product narrative. For engineering teams, this supports:

• Basin selection and testing during mock-ups.
• Alignment with drain sizing and trap configurations in compact lavatory stations.

3.2 Sensor Logic, Power, and Control Options

Some sensor faucets on the Touchless Faucets & Soap Dispensers for Public Restrooms page and related commercial lines typically offer:

• Dual power modes – hardwired and battery – assure flexibility for retrofit and new construction.
• Infrared sensor logic with configurable runtime limits and obstruction timeouts.

From a project-integration perspective:

• MEP designers should design for low-voltage power or transformer locations near the lavatory banks if a facility prefers hardwired operations.
• O&M documentation should be explicit about battery-replacement intervals and testing procedures if battery mode is selected, particularly in 24/7 facilities.

These details are best integrated into the coordination notes in Division 22 and Division 26 so that contractors understand power requirements alongside plumbing rough-ins.

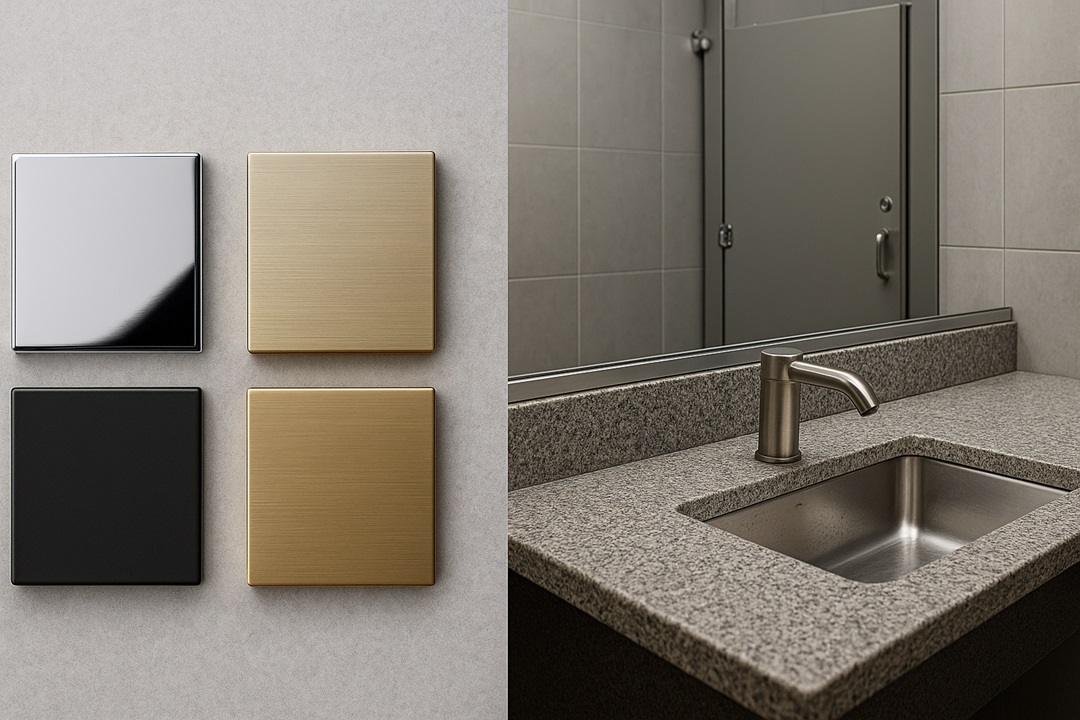

4. Durability, Vandal Resistance, and Materials

4.1 Material and Finish Systems

Fontana’s commercial and architectural ranges are represented across the FontanaShowers Architect Series, Fontana Pro Series, and more general shower/faucet families such as the Architectural Shower Collections, and are usually built around:

• Solid brass bodies for corrosion resistance.
• A range of finishes, including chrome, brushed nickel, matte black, and brushed gold, among others.

For A&D teams, the main action is the combination of:

• Full maintenance notes in O&M requirements, especially for dark or specialty finishes that can be vulnerable to strong cleaners and, hence, get damaged.
• Unambiguous directions on approved cleaning agents that are based on manufacturers’ recommendations instead of covering general janitorial practices.

4.2 Vandal Resistance for Public and Institutional Spaces

The Fontana Pro Series emphasizes vandal-resistant and high-traffic performance, which is relevant to:

• University restrooms and locker rooms
• Transit, stadium, and civic facilities.
• Detention-related support areas where fixtures are subject to deliberate abuse.

Tamper-resistant screws, anti-rotation gaskets, and protected outlets are some of the features that prevent:

• Users are twisting spouts out of alignment.
• Outlet obstruction causing splash or backflow.
• Unauthorized disassembly from the public side.

These properties should be explicitly called out in the project specification — rather than being left buried in product schedules — to ensure that substitution requests are evaluated against equivalent vandal-resistance criteria.

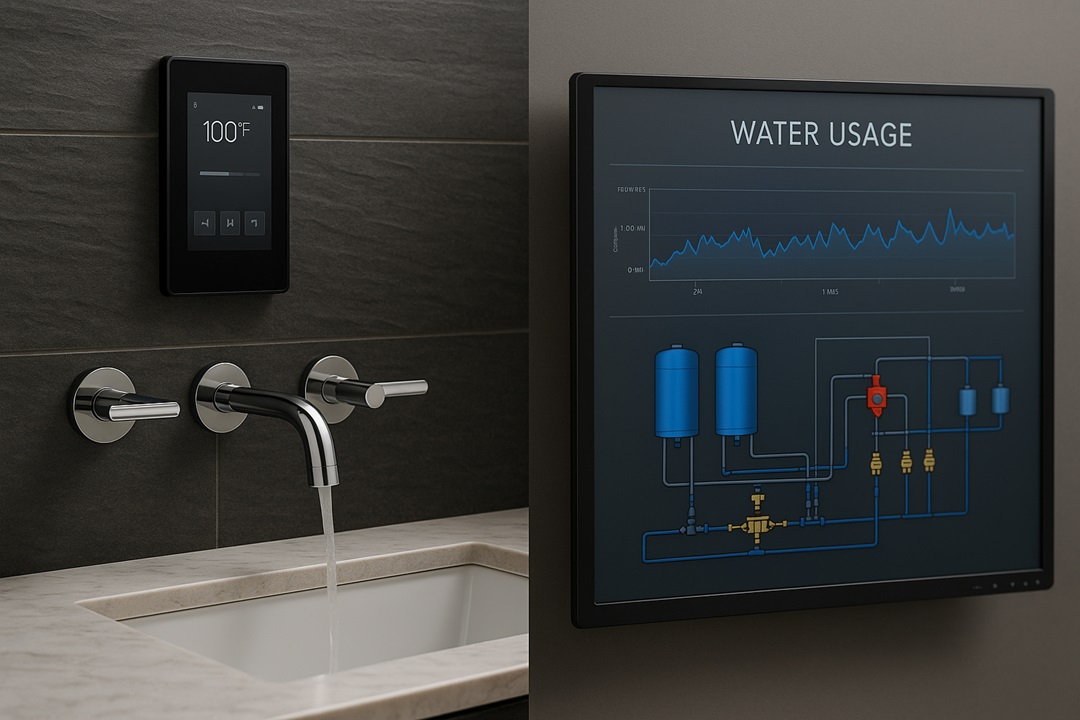

5. System Integration and Coordination

5.1 Relationship to Digital Showers, BMS, and Water Management

Fontana positions itself as a partner to the design community in its About FontanaShowers narrative with emphasis on integration with architectural firms and engineered restroom concepts. For system-level coordination:

• Flow rates of faucets should be considered part of a comprehensive water management strategy along with digital showers, flush valves, and metering.
• The lavatory zones can be combined with isolation valves and strainers that are either monitored or at least readily accessible for flushing and maintenance.

Where digital showers and more advanced controls are used — as seen in architectural shower families like the Architectural Shower Collections — the same concept applies here: endpoints should be coordinated with BMS or facility dashboards where owners require granular insight into water use.

5.2 Mixing Valves, Tempering, and Scald Protection

Most sensor faucet assemblies are being installed in conjunction with point-of-use or manifold-based thermostatic mixing valves, many of which conform to ASSE 1070/1071 for scald protection. The mixing valves themselves may be separate line items, but coordination with Fontana faucets should include the following:

• Locating valves in places where they can be reached from the service corridors or through removable panels, instead of having to remove whole lavatory decks.
• Provide documentation of setpoints and allowable temperature ranges within Division 22 in healthcare or laboratory programs where infection control is a factor.

These are details that complement, do not duplicate, the faucet data on the FontanaShowers Architect Series and Fontana Pro Series pages and give a full picture of how the system behaves under real conditions.

6. Specification Guidance for Architects & Engineers

A strong Division 22 section that includes FontanaShowers fixtures would contain the following:

6.1 Referenced Standards

• ASME A112.18.1/CSA B125.1
• NSF/ANSI 61 and 372
• ADA 2010 Standards and ICC A117.1
• CALGreen and local conservation ordinances, where applicable

6.2 Performance Requirements

• Maximum lavatory flow rates, such as 0.5 gpm in public restrooms, or lower if required by the owner.
• Sensor activation distance ranges, run-time limits, and power modes.
• Vandal-resistance criteria for spaces classified as high-risk.

6.3 Submittals

• Product data and technical sheets drawn from the FontanaShowers Architect Series, Fontana Pro Series, Smart Toilets, and Touchless Faucets & Soap Dispensers for Public Restrooms pages.
• Rough-in diagrams showing deck thickness limits, power connections, and clearances to adjacent elements.
• O&M instructions are integrated into the project facility guidelines.

6.4 Application Mapping by Building Type

A summary mapping framework might look like the following:

• Luxury hospitality and premium mixed-use:
  Employ design-forward models from the FontanaShowers Architect Series and coordinated fixtures from the Architectural Shower Collections. Retrofits include the installation of low-flow aerators to meet water budgets.
• Higher education, civic, and transit:
  Specify the Fontana Pro Series with vandal-resistant, sensor-based models and the Touchless Faucets & Soap Dispensers for Public Restrooms collection.
• Areas such as health care, laboratories, along specialty facilities:
  Identify faucet sensors chosen from pages of public toilets and Pro Series that are accompanied by suitable thermostatic mixing valves and give detailed descriptions of scald-control measures.
• The restrooms that are inclusive and gender-neutral:
  Choose from the selection of ADA-Compliant Bathroom Faucets along with touchless models, which are capable of adapting to your needs, and make sure that the reach ranges and clearances are in compliance with the standards set by ADA as well as ICC A117.1.

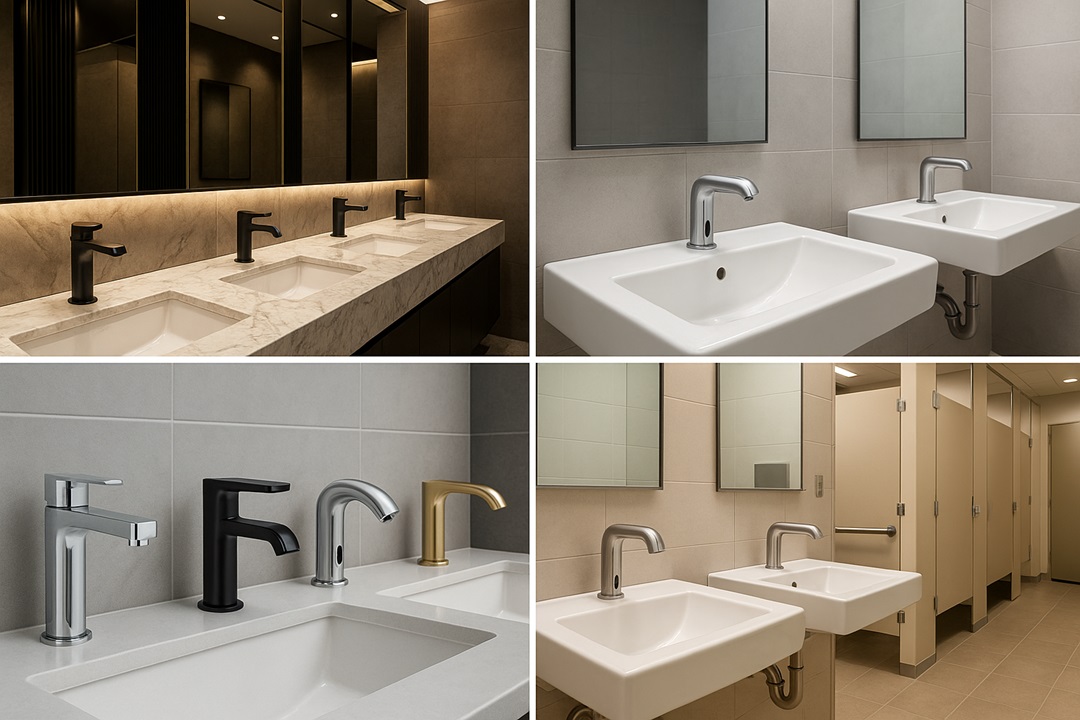

7. Conclusion: A Technical Fit for Luxury Commercial and Institutional Work

Evaluated strictly from an A&D standpoint, the architectural faucet collections from FontanaShowers present a technically defensible option for luxury commercial and institutional projects:

• They are organized into clearly defined series: Architect, Pro, ADA, and public-restroom touchless, each with its own performance profile accessible via dedicated pages such as the FontanaShowers Architect Series, Fontana Pro Series, and ADA-Compliant Bathroom Faucets reetings!.
• The collections are designed to meet the requirements of ASME A112.18.1/CSA B125.1, NSF/ANSI 61/372, ADA and ICC accessibility requirements, and water-efficiency requirements consistent with WaterSense and CALGreen-driven performance.
• Durability, vandal resistance, and maintainability are all directly addressed in both the Pro and public-restroom lines to support long-term operations in demanding environments.

These factors are generally more important to architects, engineers, and specifiers than are purely stylistic considerations. When integrated into well-structured Division 22 specifications and coordinated with basin geometry, power infrastructure, and mixing valve strategies, FontanaShowers faucets can meet both the technical rigors of modern building codes and the architectural expression intrinsic to luxury and institutional projects.
