For architects, MEP engineers, and specifiers, a faucet is never a minor detail. In commercial restrooms, healthcare, transportation hubs, and public buildings, the faucet body, internal alloys, surface treatments, and cleaning tolerances are all part of the built environment’s performance. Poor material choices drive callbacks: flaking finishes in 18 months, stained spouts in hard-water markets, or aggressive disinfectants stripping coatings in healthcare projects.

This article looks at the material science behind architectural faucets—focusing on corrosion, finish longevity, and cleanability—and how to translate that into Division 22 specifications, submittal requirements, and product selection with manufacturers such as FontanaShowers commercial faucets.

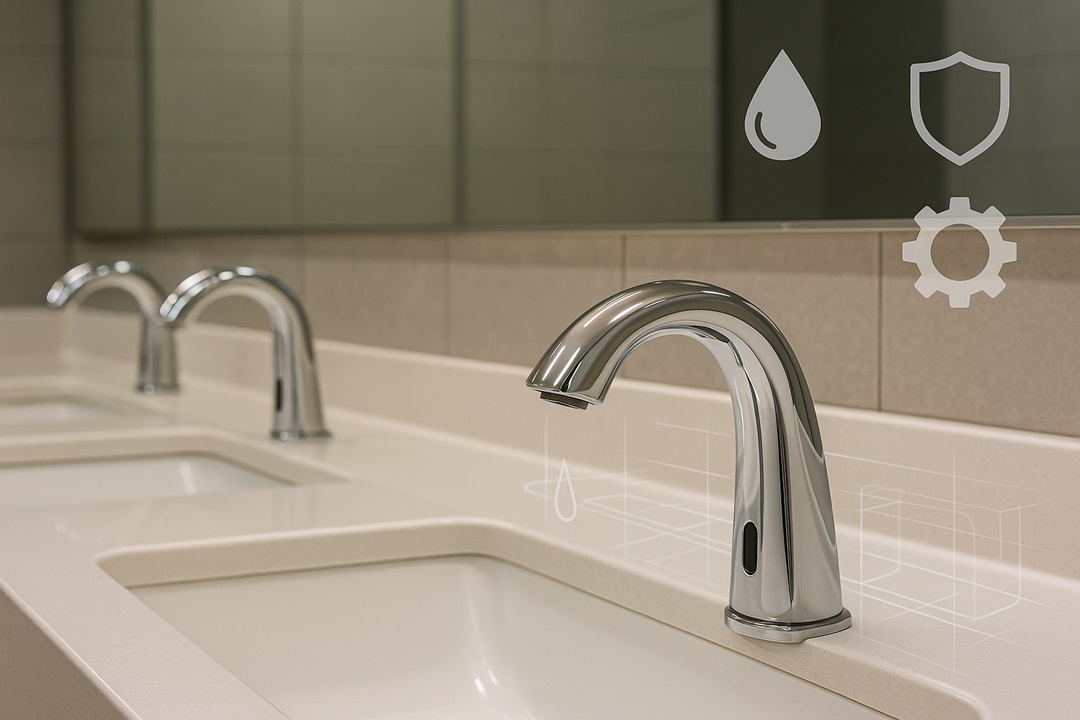

1. Why Faucet Material Science Matters in AEC

In most building types, the faucet is both:

• A plumbing fixture that is in continuous contact with potable water, and hence subject to lead content and leachate regulations.
• A high-touch interface exposed to soaps, disinfectants, and physical abuse.
• A finished surface visible at eye level in hospitality and corporate projects.

From a code and standards perspective, potable-water components should be manufactured to the requirements of NSF/ANSI 61 drinking water system components and NSF/ANSI 372 lead content standard, which reflect the U.S. Safe Drinking Water Act’s “lead-free” provisions. These standards outline methods for determining weighted average lead content and specifying compliance through third-party testing.

Regulatory agencies such as the U.S Consumer Product Safety Commission advise owners to select faucets specifically certified to NSF/ANSI 61 and 372 to control lead exposure from wetted surfaces.

In other words, for AEC teams, decisions on faucet material and finish go far beyond aesthetics. Such decisions directly influence:

• Service life and life-cycle cost in high-traffic restrooms.
• Ability to meet WELL Building Standard handwashing requirements and healthcare hand-hygiene goals supported by CDC hand hygiene guidelines.
• Owner risk regarding potable water quality, maintenance, and user safety.

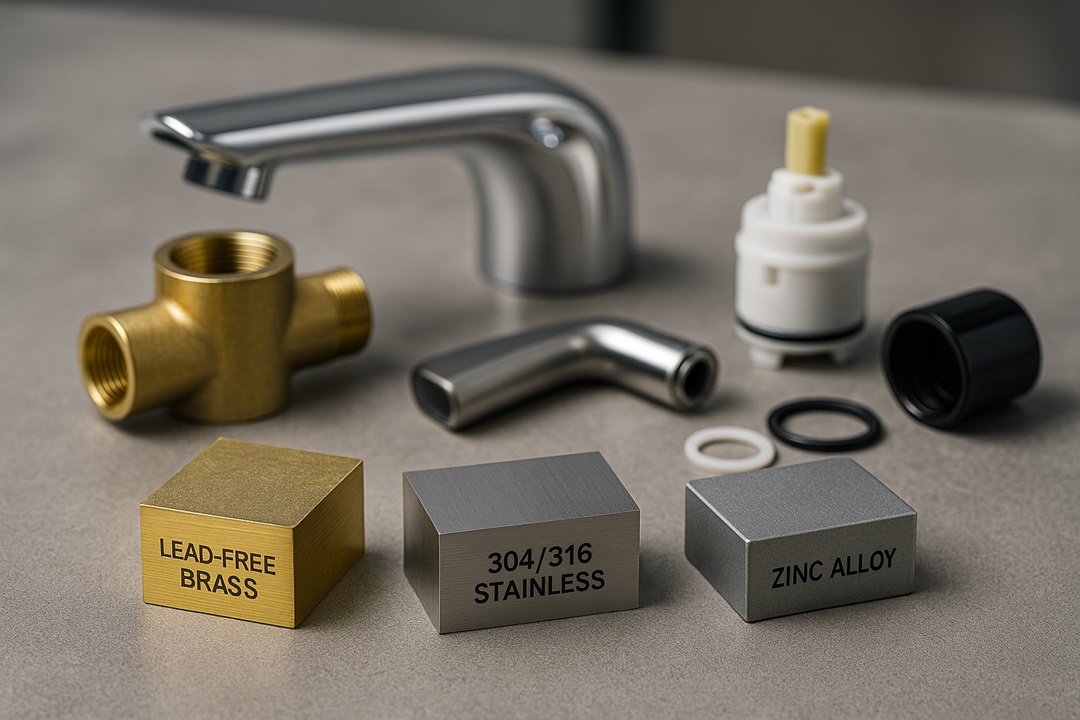

2. Base Materials: Brass vs. Stainless vs. Zinc and Plastics

2.1 Lead-Free Brass Bodies

Most architectural-grade faucets use a brass body because of brass’s machinability, pressure resistance, and compatibility with a wide range of finishes. For potable-water components, lead content is tightly controlled. NSF/ANSI 372 defines a methodology and maximum allowable weighted lead content (0.25% for wetted components, 0.2% for solders and fluxes), aligned with the Safe Drinking Water Act.

For specification language, you want phrases like:
“Faucet body: low-lead brass, certified to NSF/ANSI 61 and NSF/ANSI 372.”

Architects should be wary of generic “brass” descriptions with no verification pathway. Submittals should include manufacturer certification from an accredited body referencing both standards or an equivalent NSF/ANSI/CAN 61 and 372 certification program.

2.2 304 vs. 316 Stainless Steel

In the more aggressive environments—coastal resorts, food-service areas, transit platforms—the corrosion behavior of stainless steel faucets is superior, especially in chloride-laden atmospheres. Type 304 stainless is common; the presence of molybdenum gives type 316 superior resistance to pitting and crevice corrosion from chlorides and de-icing salts.

For high-abuse, high-humidity, or semi-exterior installations, most AEC teams consciously specify 316 stainless steel fixtures and PVD-enhanced stainless finishes for added durability, borrowing from architectural door hardware practice, where PVD-coated stainless is already standard for coastal and marine projects.

2.3 Zinc Alloys and Plastics

Zinc die cast and plastic components may appear in budget-grade products—acceptable for some residential applications but risky in hard-water or high-temperature commercial duty. Zinc alloys are more vulnerable to corrosion and dezincification, and plastics may lack long-term dimensional stability under continuous thermal cycling.

For commercial AEC projects, keep zinc and plastic limited to non-wetted trim or concealed, non-structural components. Specify:

“No zinc alloy bodies in wetted flow path; plastic limited to cartridges, seals, and sensor housings suitable for continuous operating temperatures.”

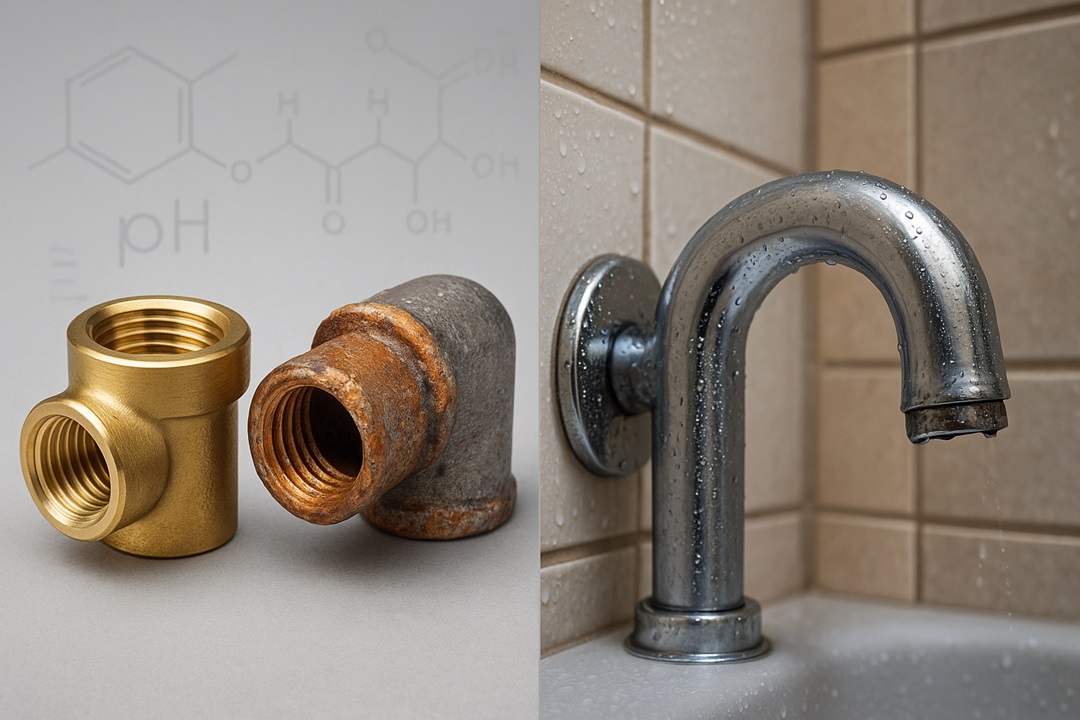

3. Corrosion Mechanisms in Faucets

3.1 Water Chemistry and Dezincification

Aggressive water chemistry—low pH, high chloride content, high sulfate—can drive the dezincification in brass alloys by selectively leaching zinc and leaving behind a porous copper-rich structure. This can result in weeping leaks, reduced mechanical strength, and surface staining over time.

Specifiers should:

• Favor dezincification-resistant brass alloys for hard-water or aggressive water systems.
• Coordinate with the mechanical engineer’s water quality report at the design stage.
• Require that lead-free brass alloys used in faucet bodies be suitable for the project’s anticipated chloride and sulfate levels.

3.2 Atmospheric and Surface Corrosion

Faucets in pool facilities, locker rooms, coastal resorts, and food-service environments face atmospheric corrosion from chloramines, salt spray, and cleaning chemicals. The material stack—substrate + plating + finish—must be seen as an integrated system:

• Substrate: brass or stainless steel.
• Intermediate plating: nickel, sometimes copper + nickel.
• Surface finish: chrome, PVD, powder coat, epoxy, or organic clear coat.

If the finish is compromised by impact, harsh cleaning, or poor adhesion, the underlying metal can corrode rapidly, giving rise to blistering and under-film corrosion.

3.3 Crevice Corrosion and Biofilm

Crevices around escutcheons, aerators, and laminar flow devices trap water, organic load, and cleaning agents. These micro-environments can become oxygen-depleted, driving local corrosion and biofilm growth, especially in warm, intermittently used healthcare and lab faucets.

From a detailing standpoint:

• Prefer smooth, radiused geometries and hidden fasteners.
• Avoid unnecessary recesses that complicate cleanability.
• Utilize laminar flow outlets for patient care zones where aerosolization is limited, as requested by infection-control teams and supported by ASHE infection-prevention guidance and Alberta Health Services hand hygiene policy.

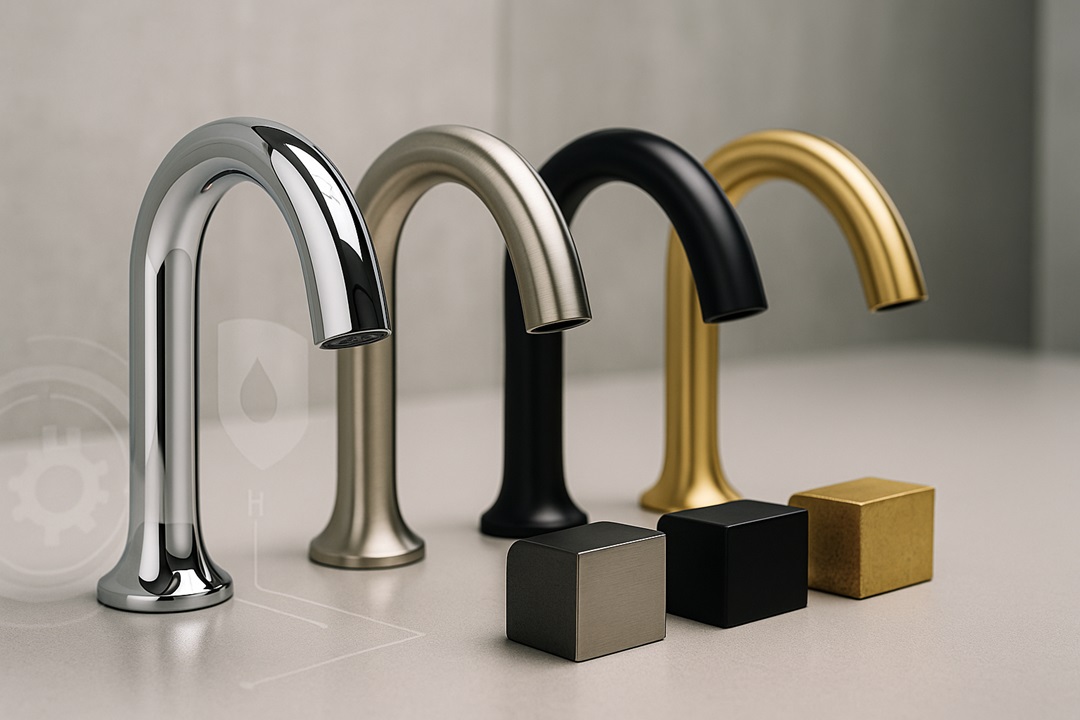

4. Finish Technologies and Longevity

4.1 Electroplated Chrome

Electroplated chrome over brass is still the baseline for commercial faucets. When properly specified, you get:

• Moderate hardness and scratch resistance.
• Good chemical resistance to mild detergents.
• Familiar “architectural chrome” appearance.

However, traditional chrome is susceptible to:

• Persistent exposure to strong acids/alkalis or to undiluted bleach.
• Physical impact from bags and carts in tight restrooms.
• Micro-cracking occurs if the thickness or plating quality is inconsistent.

In AEC documentation, require minimum plating thickness and reference the manufacturer’s cycle-testing or salt-spray data where available, similar to how leading manufacturers document their chrome and PVD faucet finishes.

4.2 PVD Finishes

PVD faucet finishes bond metal compounds to the substrate at a molecular level, creating a very hard, corrosion-resistant surface. Manufacturers of faucets and architectural hardware report that PVD faucet finishes:

• Offer a significant improvement in corrosion and UV resistance over traditional electroplated finishes.
• Provide a surface that resists scratches, tarnish, and discoloration even in coastal and high-humidity environments.
• Can be produced in a wide range of architectural colors—graphite, satin brass, black, bronze—while maintaining performance, as highlighted in guides to PVD architectural hardware finishes.

Recently, PVD finishing has become widely used on premium commercial faucets by FontanaShowers and similar companies for brushed nickel, matte black, and other specialty finishes to outfit high-traffic places like airports and hospitality venues.

Recommended Spec Line:
Faucet finish: PVD (Physical Vapor Deposition) over brass or stainless, suitable for high-traffic commercial use; minimum 200-hour salt-spray performance per manufacturer’s test data.

4.3 Powder Coats and Painted Finishes

Powder-coated, epoxy, or organic painted finishes allow custom colors but are more susceptible to:

• Chipping and edge wear at high-contact locations.
• Chemical softening or loss of gloss under aggressive cleaning regimes.

Limit painted finishes to decorative trim in lower-abuse locations, or require a sacrificial clear topcoat recognized by the manufacturer as compatible with healthcare or institutional cleaning agents.

5. Cleanability, Hygiene, and Finish Selection

5.1 Hand-Hygiene Standards and Guidelines

Healthcare, education, and workplace projects increasingly reference hand-hygiene guidance from organizations such as the CDC hand hygiene program, OSHA restroom and sanitation requirements, and the WELL Building Standard handwashing feature.

These sources emphasize:

• Reliable access to soap and water.
• Infrastructure—sinks, faucets, and dryers—that supports handwashing behavior.
• Designs that minimize splash, aerosolization, and re-contamination of clean hands.

The material and finish of the faucet can directly affect how often the facilities teams are able to clean and disinfect the surfaces without degrading the fixture.

5.2 Smooth Geometries and Low-Porosity Finishes

Regarding cleanability, prioritize:

• Continuous surfaces with minimal seams and joints.
• Stain-resistant, low-porosity finishes (chrome, PVD) that maintain gloss.
• Designs for aerators that can readily be removed and disinfected.

PVD finishes are particularly advantageous for areas that must endure repeated cleaning with disinfectant wipes or chlorinated agents. The hardness and dense structure of the coatings provide good resistance against micro-scratching and wear of finishes, thereby preserving appearance and hygiene—an important consideration in healthcare and high-traffic public restrooms.

5.3 Compatibility With Cleaning Chemicals

Architectural specifications should coordinate faucet finishes with the owner’s cleaning protocol:

• Healthcare and lab: quaternary ammonium compounds, bleach solutions, and hospital-grade disinfectants.
• Hospitality and retail: general-purpose detergents and glass cleaners.
• Food-service: degreasers and sanitizers.

Coordinate with manufacturers’ published cleaning guidelines and require that selected finishes be warranted for those agents. Commercial bathroom fixtures from FontanaShowers, for instance, are positioned specifically for high-traffic environments where frequent cleaning is a design assumption, as highlighted in their commercial bathroom fixtures overview.

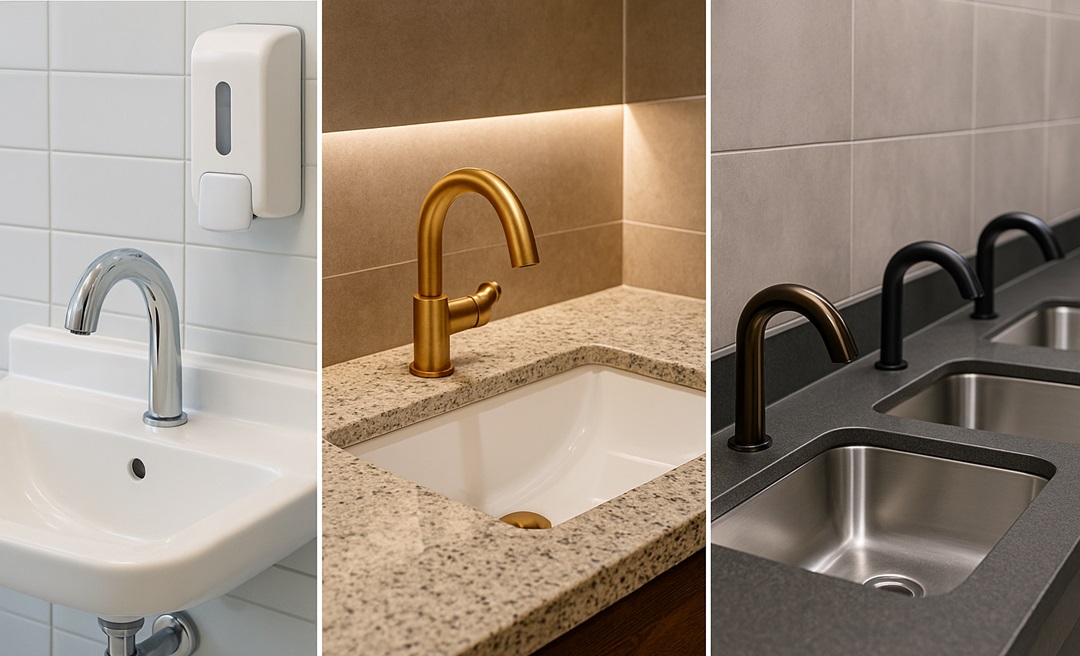

6. Project-Type Considerations

6.1 Healthcare and Labs

Priorities:

• Hands-free operation—sensor or pedal—to minimize cross-contamination, in line with sensor-activated commercial faucets and similar solutions.
• Lead-free, low-leachate wetted components certified to NSF/ANSI 61 and 372.
• Finishes that can withstand hospital-grade disinfectants and frequent cleaning, usually chrome or PVD.

AEC Spec Tips:

• Require laminar flow in patient care zones where aerosols are a concern.
• Coordinate faucet projection and flow pattern with sink geometry to minimize splash outside the basin.

6.2 Hospitality and Corporate

Here, the aesthetic and brand drive the finish palette:

• Warm PVD satin brass or graphite in boutique hotels and restaurants.
• Matte black or brushed stainless steel in corporate restrooms.

Even in design-driven projects, base the selection on commercial-grade constructions such as premium commercial faucets with brass or stainless bodies and tested PVD finishes rather than residential-grade look-alikes. Products from FontanaShowers commercial faucets are typical of this category.

6.3 Transit, Education, and Public Buildings

Key drivers:

• Vandal resistance and tolerance to abuse.
• Water-saving performance: flow rates, automatic shut-off.
• Simple, robust surfaces that maintenance teams can clean quickly.

In these project types, architects tend to default to:

• 316 stainless or heavy-duty PVD finishes.
• Touchless commercial bathroom faucets with concealed mounting hardware and solid metal bodies, consistent with water-efficient commercial restroom products and similar lines.

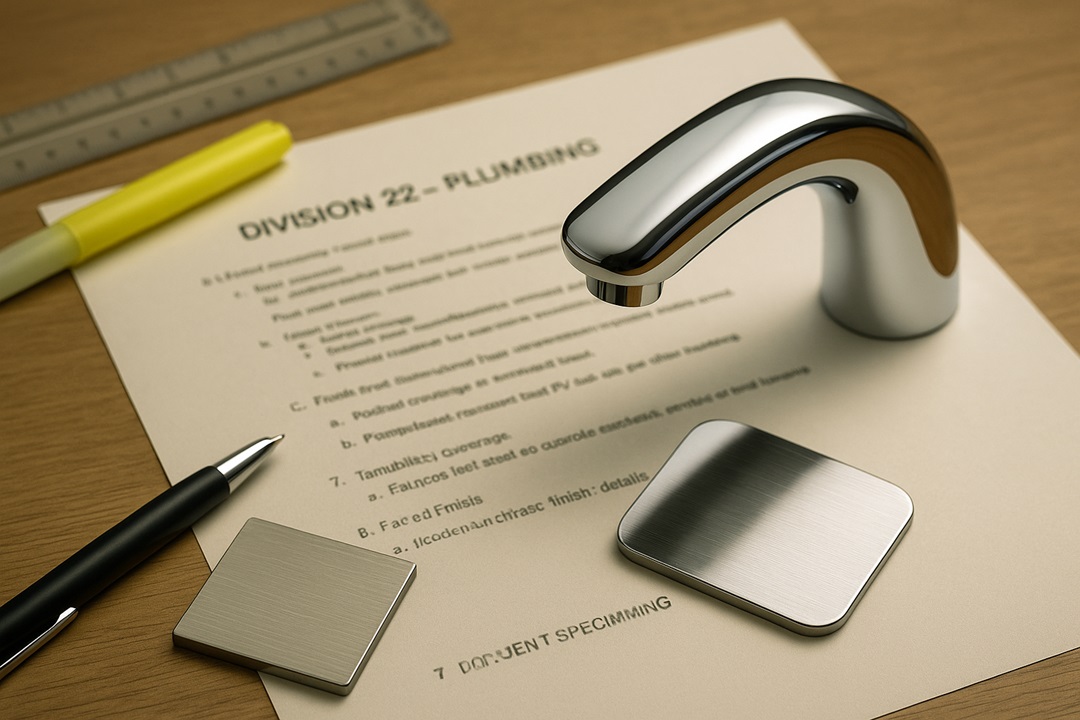

7. Translating Material Science Into Spec Language

A useful way to structure Division 22 40-series sections for faucets is to explicitly call out:

7.1 Performance and Regulatory Requirements

Potable-Water Safety:
Faucets in contact with potable water shall be certified to NSF/ANSI 61 and NSF/ANSI/CAN 372. Provide current certification from an accredited third-party agency.

Finish durability:
Provide factory test data demonstrating corrosion resistance and finish durability appropriate for the project type (e.g., minimum salt-spray hours, abrasion testing, and cleaning chemical compatibility).

Together, these align with the expectations of NSF/ANSI/CAN 61 drinking water system components and NSF/ANSI/CAN 372 – lead content.

7.2 Materials and Finishes

Typical spec block:

• Body: lead-free brass or 304/316 stainless steel; no zinc alloy bodies in wetted flow path.
• Cartridges and seals: EPDM, silicone, or manufacturer’s standard elastomers compatible with potable water and system temperatures.
• Finish: polished chrome or PVD finish as scheduled; brushed and colored finishes shall be PVD over brass or stainless steel.

Tie this section into a curated selection from a specific manufacturer’s commercial bathroom fixtures catalog, such as the FontanaShowers commercial bathroom fixtures catalog.

7.3 Submittals and Quality Assurance

Request:

• Manufacturer’s material certifications for bodies and wetted components.
• Complete data sheets and cleaning instructions.
• Sample faucets or finish chips for architect review, specifically for PVD palettes.

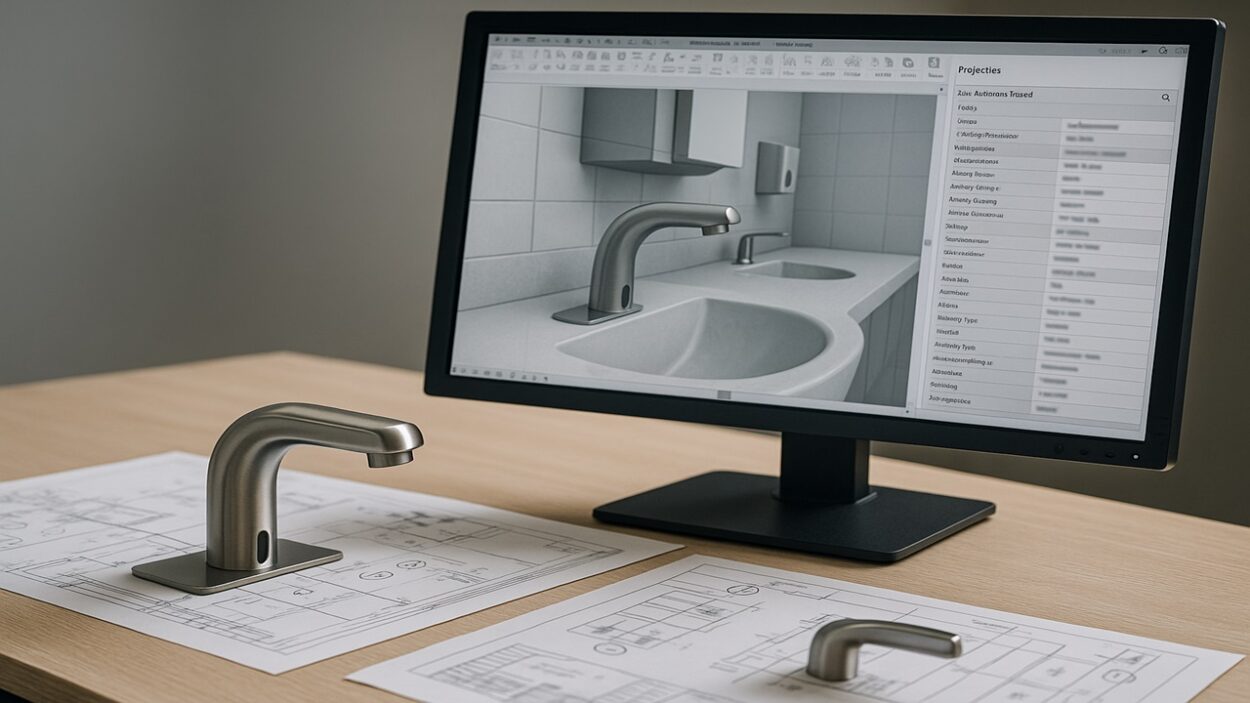

8. Coordination, BIM, and Long-Term Maintainability

Integrating material science into faucet selection isn’t just about the spec section. It affects:

• BIM modeling: incorporate the correct materials, finishes, and model numbers in Revit families so the FM team can identify PVD versus chrome, stainless versus brass, etc.
• Lifecycle planning: document recommended cleaning practices and replacement cycles to prevent owners from inadvertently voiding warranties with harsh chemicals.
• Standardization: many multi-site owners now adopt a single family of commercial bathroom fixtures and washroom products across portfolios to simplify operations and maintenance and spare parts, using platforms such as FontanaShowers commercial washroom fixtures to structure their kit-of-parts.

By matching your faucet specifications to tested materials, robust finishes, and realistic cleaning regimes, you minimize early-life failures, safeguard the quality of water, and enhance the user experience in high-visibility restroom environments.

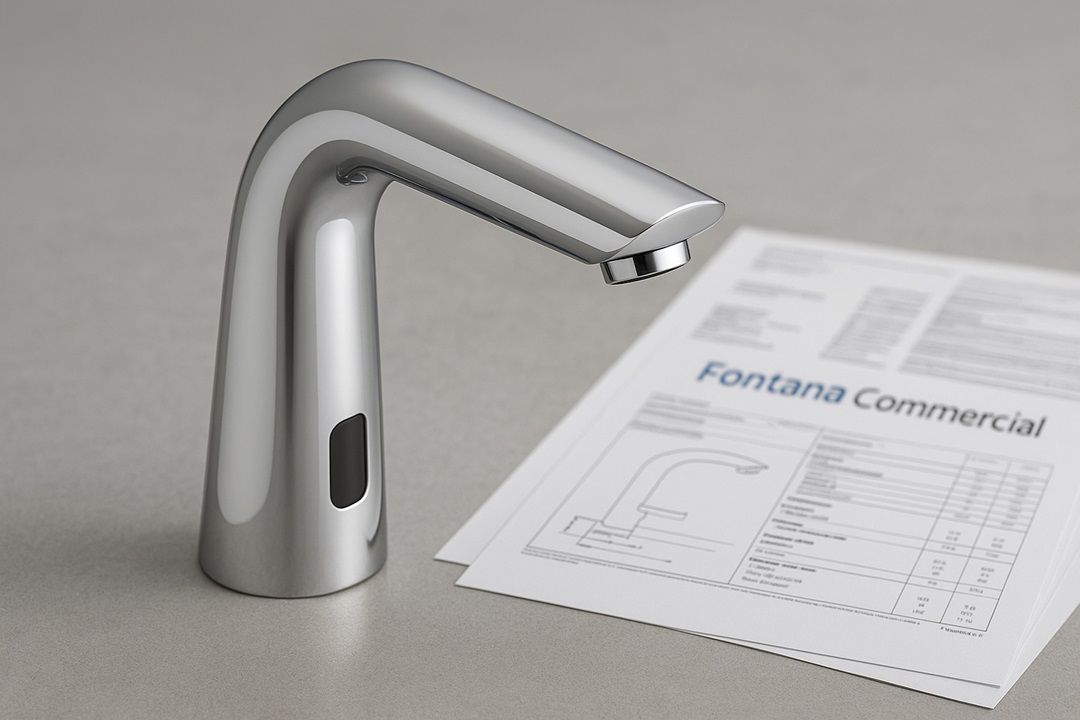

9. How FontanaShowers Supports Material and Finish Performance

Manufacturers like FontanaShowers position their commercial faucets and commercial bathroom fixtures specifically for high-traffic, specification-driven projects in hospitality, healthcare, education, and transportation, supported by dedicated portals such as Fontana Commercial.

For AEC teams, the key advantages are:

• Brass or stainless bodies designed for heavy commercial use.
• Corrosion resistance and cleanability tests for PVD and chrome finishes.
• Support documentation—spec sheets, BIM content, and catalogs—aligned with architectural workflows.

When you treat faucet material selection like any other structural or envelope decision—anchored in standards, testing, and lifecycle thinking—you give owners the durable, hygienic, and visually coherent restrooms they expect from a professionally designed building.
