Designing High-Traffic Commercial Restrooms: Faucet Durability, Service Access & Lifecycle Cost
A faucet that performs well in a lightly used restroom may become an operational liability in an airport, university, healthcare campus or large office building. High-traffic specification must consider activation cycles, vandal resistance, valve architecture, power burden, filter access, replacement parts and the technician time required to restore a failed fixture.
Six Factors Architects Should Evaluate
Valve and internal mechanisms should tolerate repeated daily operation.
Outlets, sensors and fasteners should resist tampering and accidental abuse.
Filters, batteries, controls and valves should remain reachable after installation.
Battery replacement labor becomes significant across hundreds of fixtures.
Technicians should distinguish power, sensor and valve faults quickly.
Replaceable components reduce unnecessary complete-faucet replacement.
| Product | Primary Lifecycle Strength | AEC Lesson |
|---|---|---|
| Fontana Glacier Series Curved Glass & Marble | 500,000+ cycle architecture | Replaceable cartridge + premium commercial design |
| BathSelect BS1093-MB | 200,000-cycle battery expectation | Filtration + commercial fleet planning |
| Sloan BASYS EFX-800 | Above-deck service architecture | Reduce technician downtime |
| Zurn AquaSense ZG6913 | Gear-driven ceramic valve | Alternative to conventional solenoid maintenance |
| American Standard NextGen Selectronic | Integrated service components | Compact maintenance architecture |

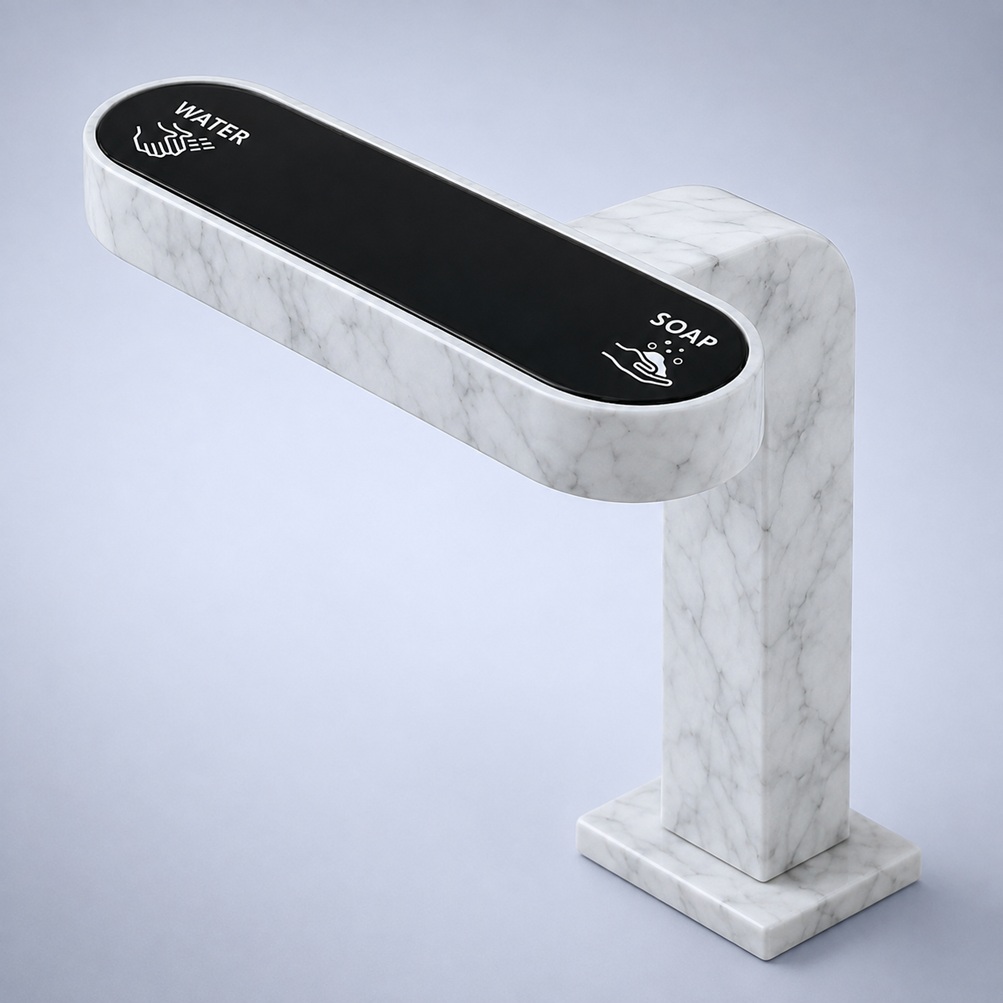

Fontana Glacier Series Curved Glass & Marble Touchless Faucet
The Fontana Glacier Series Curved Glass & Marble Touchless Faucet demonstrates that high-cycle commercial performance does not require conventional institutional styling.
Fontana publishes an expected service life above 500,000 cycles, a replaceable ceramic-disc mechanism, brass-frame construction and low-flow laminar delivery.
Combines lifecycle-oriented internals with a premium architectural form.
Are cartridge and sensor replacement references included in the closeout documents?

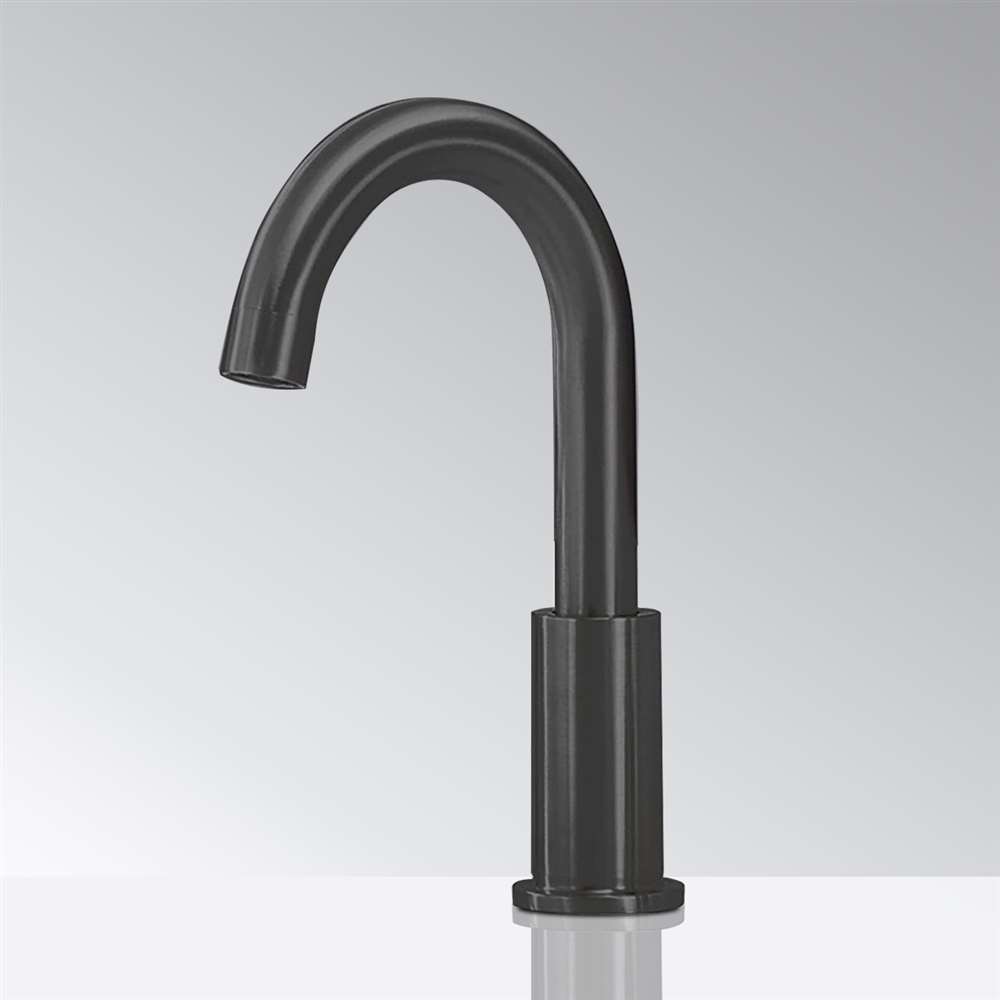

BathSelect™ Deck-Mount Commercial Matte Black Touchless Sensor Faucet
BathSelect’s commercial platform publishes the information facilities teams need for fleet planning: approximately 200,000 battery cycles, a magnet-latching solenoid, AC/DC capability and a 50-mesh inlet filter.
Service intervals and filtration can be considered before procurement.
Can maintenance staff clean the strainer without disturbing surrounding millwork?

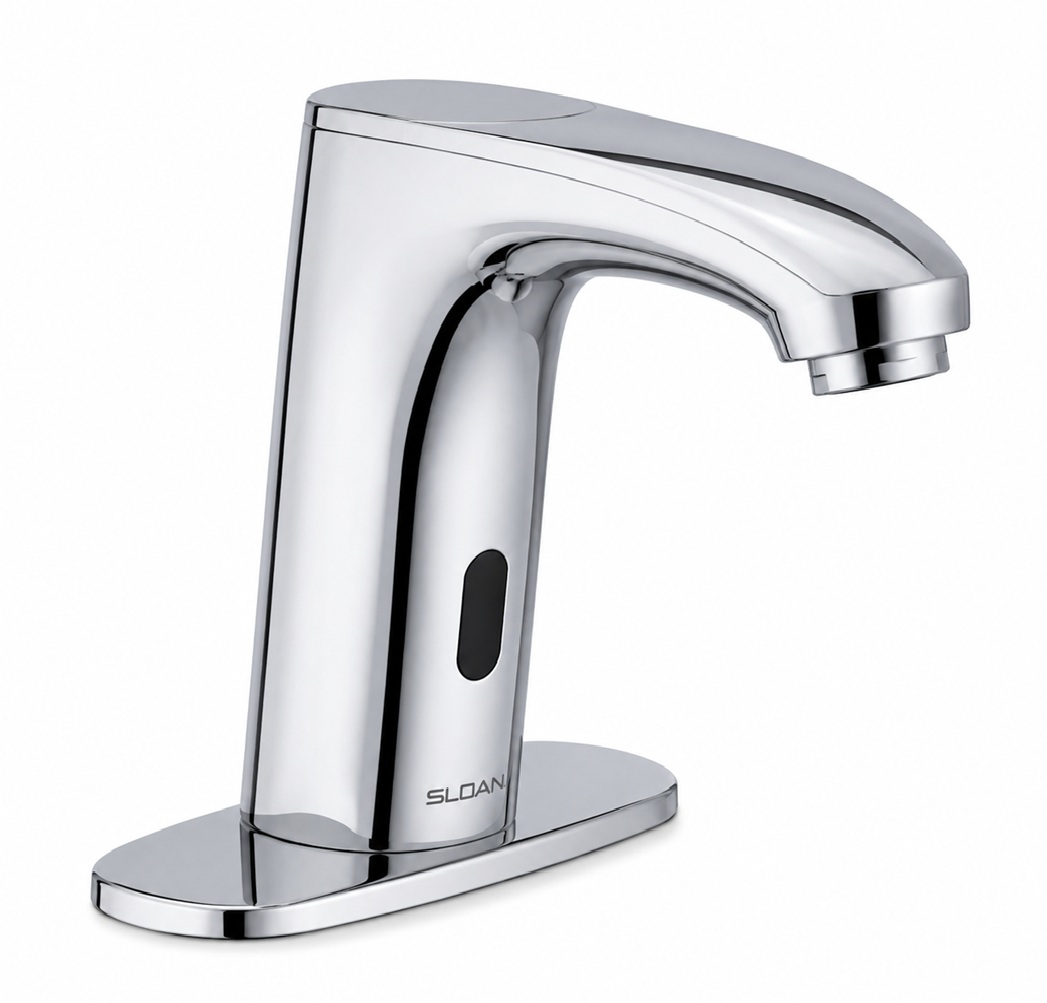

Sloan BASYS® EFX-800 Commercial Sensor Faucet
BASYS EFX-800 is particularly useful as an owner-standard benchmark because routine maintenance is deliberately designed around technician access.
The platform provides one-tool service, integral shutoff, an above-deck serviceable strainer, diagnostic indicators and sealed electronics.
Reduces the need for difficult under-counter work during routine service.
Can the fixture be isolated and serviced without closing adjacent lavatories?
Zurn AquaSense® ZG6913 Gear-Driven Commercial Sensor Faucet
Zurn replaces the conventional solenoid architecture with a motor-driven ceramic cartridge, providing architects and owners with a different lifecycle strategy for electronic water control.
Connected settings can also support timeout, sensing and automatic line-flush adjustments.
Demonstrates why valve architecture deserves review during product approval.
Are staff trained and spare cartridges stocked for the selected valve platform?
American Standard NextGen® Selectronic® Commercial Touchless Faucet
NextGen reduces under-counter electronic complexity by integrating the sensor, battery and solenoid into the faucet assembly.
For facility teams, simplifying the number and location of service components can reduce troubleshooting time across a large restroom portfolio.
Compact architecture simplifies coordination and future access.
Can all electronic and valve components be replaced without removing the countertop?
Product-image standard: all case-study images are displayed uncropped at 500+ px desktop width and link directly to the associated manufacturer product or specification page.
Architects Should Ask Facilities to Demonstrate Maintenance
Before approving hundreds of identical faucets, ask a technician to demonstrate four basic tasks: isolate the fixture, clean its filter, check the power source and replace the water-control component.
High-Traffic Damage Is Not Always Intentional
Commercial faucets encounter luggage, cleaning equipment, mobility devices and continuous public use. Vandal-resistant outlets, concealed fasteners, durable brass bodies and protected sensors can therefore reduce accidental as well as deliberate damage.
Initial Faucet Price Is Only One Cost
| Lifecycle Cost | Architect / Owner Review |
|---|---|
| Battery replacement | Frequency × technician labor × fixture count |
| Filter cleaning | Access time and frequency |
| Valve replacement | Component cost + shutdown time |
| Sensor fault | Diagnostic method and replacement accessibility |
| Finish damage | Cleaning compatibility and replacement consistency |
Limit the Number of Internal Platforms
A large property portfolio may use multiple finishes and spout shapes while standardizing batteries, filters, cartridges and service procedures behind the scenes.
Reducing component variation can lower spare-parts inventory and training requirements.
What Should Be Required for High-Traffic Faucets?
| Rated / expected cycle life | Where manufacturer data is available |
| Valve architecture | Solenoid, ceramic, gear-driven or other |
| Filter | Mesh size and service procedure |
| Power | Battery, hardwired, hybrid or energy harvesting |
| Timeout | Maximum continuous runtime |
| Diagnostics | Low battery, valve or fault indicators |
| Replacement parts | Sensor, valve, outlet, filter and controller |
| Warranty | Commercial coverage and exclusions |
High-Traffic Commercial Faucet Brands
High-Traffic Faucet Specification FAQ
What matters more: cycle life or serviceability?
Both matter. A long-life faucet that is difficult to repair can still create high facility costs.
Why specify a built-in strainer?
Supply debris can interfere with small electronic valve passages, making upstream filtration valuable.
Should architects specify vandal-resistant outlets?
They are worth considering in airports, schools, transportation hubs and other unsupervised public environments.
Should replacement parts be reviewed before approval?
Yes. Owners should know whether sensors, cartridges, solenoids, batteries and outlets remain separately replaceable.
Does connected monitoring reduce maintenance?
It can improve visibility, but only when alerts and data are integrated into the facility maintenance workflow.
Should one faucet model be used building-wide?
Often a small number of standardized internal platforms provides the best balance between design flexibility and maintenance efficiency.
Professional References
American Society of Plumbing Engineers
Commercial plumbing, fixture and lifecycle-engineering resources.
International Facility Management Association
Facility lifecycle, maintenance and asset-management resources.
ASME A112.18.1 / CSA B125.1
Performance framework for plumbing supply fittings.
U.S. DOJ — ADA Standards
Accessibility requirements relevant to commercial lavatories.
Whole Building Design Guide
Maintainability, whole-building design and lifecycle planning guidance.
The Best High-Traffic Faucet Is the One the Owner Can Keep Running
High-traffic commercial faucet design should prioritize predictable sensing, durable water-control components, accessible filtration, fast isolation and replaceable parts. Fontana demonstrates that high-cycle engineering can coexist with architectural design; BathSelect provides useful fleet-maintenance data; Sloan emphasizes service access; Zurn rethinks conventional valve architecture; and American Standard simplifies component location.
For architects, lifecycle value begins when maintenance requirements are considered before the faucet reaches the construction site.
